Anti-static acrylic sheets are like the unsung heroes of materials, swooping in to save the day where sparks could cause chaos. Whether you’re in electronics, powersports, or marine manufacturing, these sheets are your ticket to safety, durability, and performance. Let’s dive into why ANDISCO’s anti-static acrylic sheets are a game-changer, covering everything from their creation to real-world success stories.
Anti static(ESD) acrylic is a material that’s tougher than glass, clear as crystal, and stops static electricity dead in its tracks. That’s what anti-static acrylic sheets, also called electrostatic dissipative (ESD) acrylic, bring to the table. These sheets are coated with a special blend of metal and plastic that prevents static buildup, making them a must-have in environments where a spark could damage equipment or ignite flammable materials.
Why does this matter? In industries like electronics, a tiny static discharge can fry sensitive components. In oil and gas, it could trigger an explosion. ANDISCO’s sheets, with their advanced coatings, ensure static charges dissipate quickly, keeping your operations safe and smooth. Curious about how we make these wonders? Let’s find out.
Anti-static acrylic sheets are like the Swiss Army knife of materials—versatile, tough, and packed with features. Here’s why they’re a cut above:
Static Control: The conductive coating prevents static buildup, protecting sensitive electronics and reducing fire risks in volatile environments.
Clarity: Crystal-clear like glass, they’re perfect for applications needing visibility, like display panels or windshields.
Lightweight: Easier to handle and install than heavier materials, saving you time and effort.
Chemical Resistance: They stand up to harsh chemicals without degrading, ideal for industrial settings.
Abrasion Resistance: Scratches? Not on our watch. These sheets stay pristine even under wear and tear.
Flame Retardant: An extra layer of safety for high-risk environments.
Weatherproof: Humidity, fog, or UV rays won’t faze them, making them great for indoor and outdoor use.
With ANDISCO’s 2024 advancements in anti-glare, high-wear resistance, and anti-fingerprint coatings, our sheets are more durable and user-friendly than ever. But how do they stack up against other materials? Let’s compare.
| Material | Static Control | Impact Resistance | Clarity | Durability | Applications |
| Anti-Static Polycarbonate | Excellent (permanent ESD coating) | 250x stronger than glass | Crystal clear | High (abrasion/chemical resistant) | Electronics, marine,oil & gas |
| Regular Polycarbonate | None | 250x stronger than glass | Crystal clear | High(but less abrasion-resistant) | General use,no static concerns |
| Acrylic | Limited (temporary coatings) | Less than polycarbonate | Clear | Prone to scratching | Displays,signage |
| Anti-Static Film/Tape | Temporary | Low | Varies | Low durability | Short-term static control |
Surface Resistivity: Measured in ohms per square (Ω/sq). Look for 10⁶ to 10⊃1;⊃1; Ω/sq (dissipative range).
* Static Decay: Time (in seconds) for a high voltage charge (e.g., 5000V) to dissipate to a safe level (e.g., 10% or 100V). Faster is better (e.g., < 2.0 seconds is common).
* Standards: Often conforms to ANSI/ESD S20.20, IEC 61340, or ASTM D257. Ask the supplier for test data.
Yes, similar to standard polycarbonate:
Cutting: Sawing (circular, band, jig), CNC routing, laser cutting (requires specific settings, can char edges).
Bending: Requires thermal forming (using a strip heater or oven).
Drilling/Tapping: Standard methods work.
Note: Fabrication processes can slightly affect the anti-static properties at cut edges or heated areas, but the bulk properties remain. Grounding fixtures during machining is recommended.
Use mild soap/detergent and water with a soft cloth or sponge.
Avoid abrasive cleaners, scouring pads, or harsh solvents (like acetone, ketones, strong alcohols) which can damage the surface or degrade the anti-static properties.
Isopropyl alcohol (IPA) diluted with water is often acceptable for disinfection if needed (check manufacturer recommendations). Rinse thoroughly with DI water.
Dry with a soft, lint-free cloth.
Yes, when used appropriately. Its surface resistivity typically falls within the dissipative range (10⁶ - 10⊃1;⊃1; ohms/sq). This allows charges to bleed off slowly and safely, preventing sudden ESD events that damage components. It is not conductive (like metal).

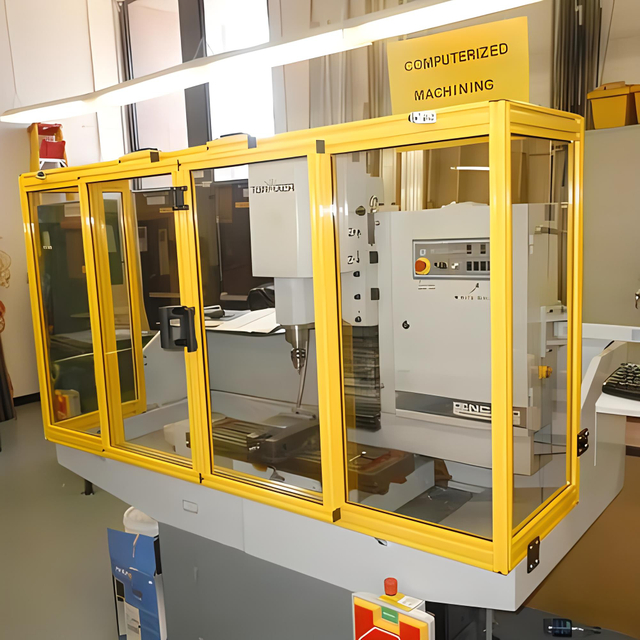

ESD-Safe Machine Guards & Safety Shields: Around electronics assembly, testing, and handling equipment.

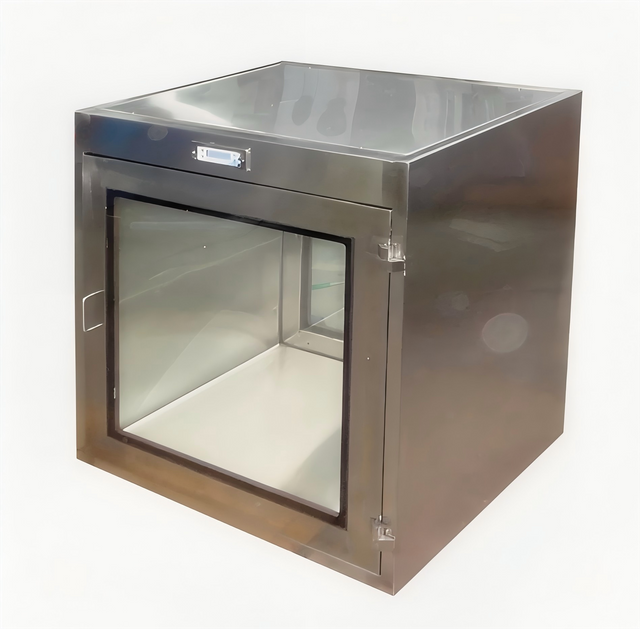

Cleanroom Windows & Partitions: Walls, pass-throughs, equipment enclosures.
Jigs, Fixtures & Handling Trays: For PCBs, semiconductors, delicate assemblies.
Conveyor Guides & Covers: Preventing static buildup in material transport.

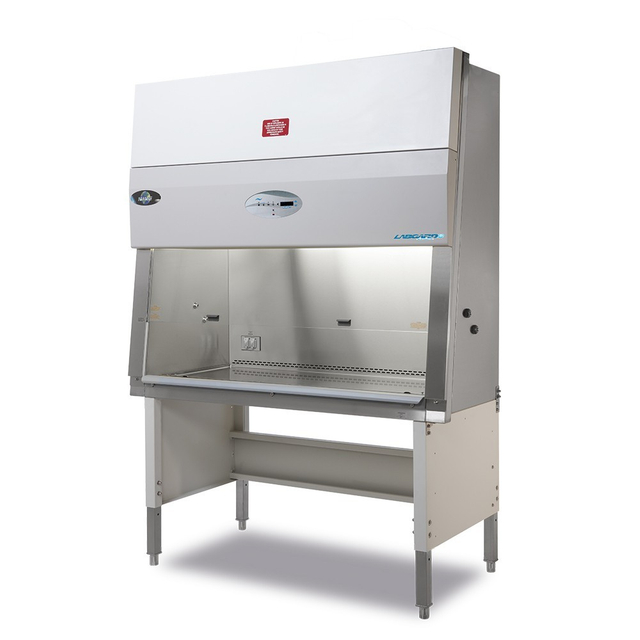

Instrument Housings & Viewports: For sensitive lab/medical equipment.
Protective Screens: In areas where static sparks pose fire/explosion hazards.
Conductive Additives: Embedded materials (e.g., carbon) create a conductive network within the PC matrix.
Surface Chemistry: Some versions use permanent anti-static agents that migrate to the surface, attracting moisture from the air. This thin layer of moisture allows charges to bleed off slowly and safely.
Result: Static charges don't accumulate; they flow across the surface and safely dissipate to ground (often via contact with grounded surfaces or operators).
