| Feature | Benefit |

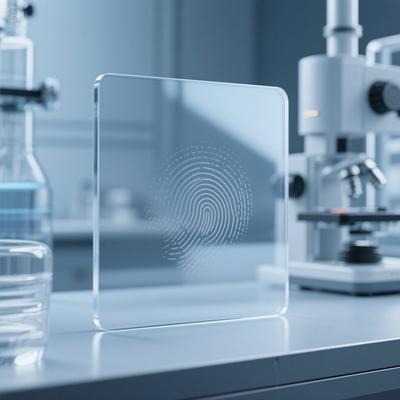

| Anti Fingerprint/Anti Smudge | The surface is hydrophobic and oleophobic (contact Angle >110°), making it difficult for fingerprints and oil stains to adhere. It can be wiped clean with just one wipe. |
| High Lighting Transmission | The light transmittance is over 90%, and the coating hardly affects the optical performance (the light transmittance of ordinary PC is about 88%). |
| Abrasion Resistance | The surface hardness can reach over 3H (about 2H for ordinary PC), and it has passed the Taber test (no obvious scratches after 500 wears). |
| Chemical resistance | It is resistant to alcohol, cleaning agents, weak acids and weak alkalis, and the coating is not easy to fall off. |
| Light Weight and Impact Resistance | With a density of 1.2g /cm³ (only half that of glass), its impact resistance is over 200 times that of glass. |
| Weatherability | UV-resistant (UV coating optional), it won't yellow or crack even after long-term outdoor use. |
| Type | Compund Function | Typical Application |
| Anti Fingerprint+Anti Glare（AG） | The surface micro-texture not only minimizes reflected light but also exhibits anti-fouling properties simultaneously. | Outdoor display screens, car central control screens, AR glasses. |
| Anti Fingerprint+Anti Static | The surface resistance is less than 10⁶Ω. | Dust-free workshops in electronic factories and operation panels for precision instruments. |
| Anti Fingerprint+Antibacterial | Add silver ions or photocatalysts (such as TiO₂) to inhibit bacterial growth. | Medical equipment, public touch screens, food processing equipment Windows. |
Conductive Additives: Embedded materials (e.g., carbon) create a conductive network within the PC matrix.
Surface Chemistry: Some versions use permanent anti-static agents that migrate to the surface, attracting moisture from the air. This thin layer of moisture allows charges to bleed off slowly and safely.
Result: Static charges don't accumulate; they flow across the surface and safely dissipate to ground (often via contact with grounded surfaces or operators).
Yes. PC is hygroscopic and must be dried at 120-130°C for 3-4 hours (moisture content <0.02%).
Our Advantage: Pre-dried customized materials available with guaranteed moisture compliance, reducing your production energy costs.
Compatible with injection molding, extrusion, blow molding, and thermoforming. Key applications include:
Electronics: Flame-retardant PC smartphone housings (UL94 V-0 certified)
Automotive: High-impact PC headlight covers (ISO 9001/IATF 16949 compliant)
Optics: Optical-grade PC lenses (>90% light transmission)
Success Stories: Explore 500+ global client cases in our [Product Gallery].
Adopt our Smart Drying System (inline humidity monitoring + auto-alert)
Free access to Process Parameter Kits with verified settings:
Melt temp: 280-320°C
Mold temp: 80-120°C
Runner optimization: Leverage our MoldFlow Simulation Service (30% fewer trial cycles)
Venting design: 0.02-0.03mm depth (Free DFM analysis report included)
Post-Processing Solutions:
Annealing: 110-130°C/1-4hrs (Vacuum annealing equipment optional)
Surface coating: Custom AR/Anti-glazing treatments
Recycled PC Solutions: 30% post-industrial regrind blends (GRS-certified)
Energy-Saving Tech: Low-Temp/High-Pressure Molding Packages (15-20% energy reduction)
PC offers excellent toughness but can be surface-hardened for demanding applications. Our advanced solutions include:
Andisco Hard Coat (AHC):
Scratch resistance up to 6H pencil hardness for acrylic and HB for polycarbonate
Ideal for touchscreens & automotive interiors
Our Service: In-line coating equipment integration support
Anti-Reflective (AR) Nano-Coatings:
Reduce surface reflectance to <1% while improving hardness
Critical for optical lenses & display covers
Solvent-Induced Crystallization:
Increases surface hardness by 40% via controlled solvent exposure
Maintains 90% light transmission
Case Study: Used in aviation window panels (MIL-STD-810G compliant)
Diamond-Like Carbon (DLC) Deposition:
Achieves 15-20 GPa nano-hardness
Perfect for medical devices requiring sterilization resistance
Yes. Our Metal-PC Direct Bonding Technology enables:
Overmolding：Aluminum/PC composite parts with peel strength >8 MPa
Laser Welding：Stainless steel reinforcement for load-bearing joints
Benefits：
50% weight reduction vs. all-metal parts
IP67 sealing without adhesives
Advanced Hardening Post-Processing
Step 1：Precision Annealing
Vacuum-controlled cycles (120°C/2hr) to eliminate internal stress
Step 2：Surface Activation
Corona/Plasma pretreatment (Dyne level >54)
Step 3：Coating Application
Custom thickness 5-50μm (Optical/EMI shielding dual-functional options)
Turnkey Service: From design to hardened components – we manage the entire value chain.
This comprehensive survey ensures all aspects are covered, providing a complete resource for understanding clear polycarbonate sheets.
PC excels in CNC machining for prototyping and low-volume production. Achieve <0.01mm tolerances with our guidelines:
Cutting Tools:
Carbide end mills with polished flutes (15° helix angle)
Diamond-coated drills for hole consistency (Aerospace Standard AS9100 compliant)
Geometry:
2-flute for roughing (chip clearance optimization)
4-flute for finishing (Ra <0.8μm achievable)
| Operation | Speed (SFM) | Feed (mm/tooth) | Depth of Cut (mm) |
|---|---|---|---|
| Milling | 300-500 | 0.05-0.15 | ≤2×tool diameter |
| Drilling | 200-400 | 0.03-0.08 | Peck drilling cycle |
| Engraving | 600-800 | 0.01-0.03 | 0.1-0.3 |
Pro Tip: Use compressed air cooling (no lubricants) to prevent stress cracking.
Solution:
Pre-heat material to 80-90°C (thermal stabilization)
Climb milling strategy with ≤5% stepover
Solution:
High-speed spindle (≥20,000 RPM) + trochoidal tool paths
Our Cryo-Machining System: Liquid CO₂ cooling (-78°C)
Post-Process: Flame polishing (propane torch, 3s exposure @400°C)
Benefits:
60% faster feed rates on >10mm thick PC sheets
Burr-free cutting (medical implant grade finish)
Our Capability: Provide fibre laser integrated machine tool rental service.
Ideal for microfluidic channel fabrication:
Minimum feature size: 50μm
Wall roughness: Ra 0.2μm
✅ Digital Twin Service: Upload CAD files for instant machining simulation
✅ Material-Cutting Tool Kits: Pre-tested tool + parameter bundles
✅ Rapid Turnaround: 48-hour machined sample service (5-axis capability)
We are a leading manufacturer specializing in precision processing of engineering plastics.Our services cover:
✅ Custom Sheet Cutting & Fabrication
✅ CNC Machining & Drilling
✅ Thermoforming & Vacuum Forming
✅ Enhancement Surface Coating
✅ OEM Plastic Parts Production
We deliver durable, lightweight, and impact-resistant components for industries like automotive, signage, electronics, and construction. Request a quote for tailored plastic solutions!
